● Includes binocular MZDH15100B，MZDH15100BC（coaxial illumination） and MZDH15100BT、15100BTC（coaxial illumination）

● Original design, high-magnification, high-resolution

● Video(or digital) display, take pictures using digital camera and eyepieces observation simultaneously. The image is erecting by binocular eyepieces observation.

● Specially used for observe , inspect & measure microcosmic surface of objects.

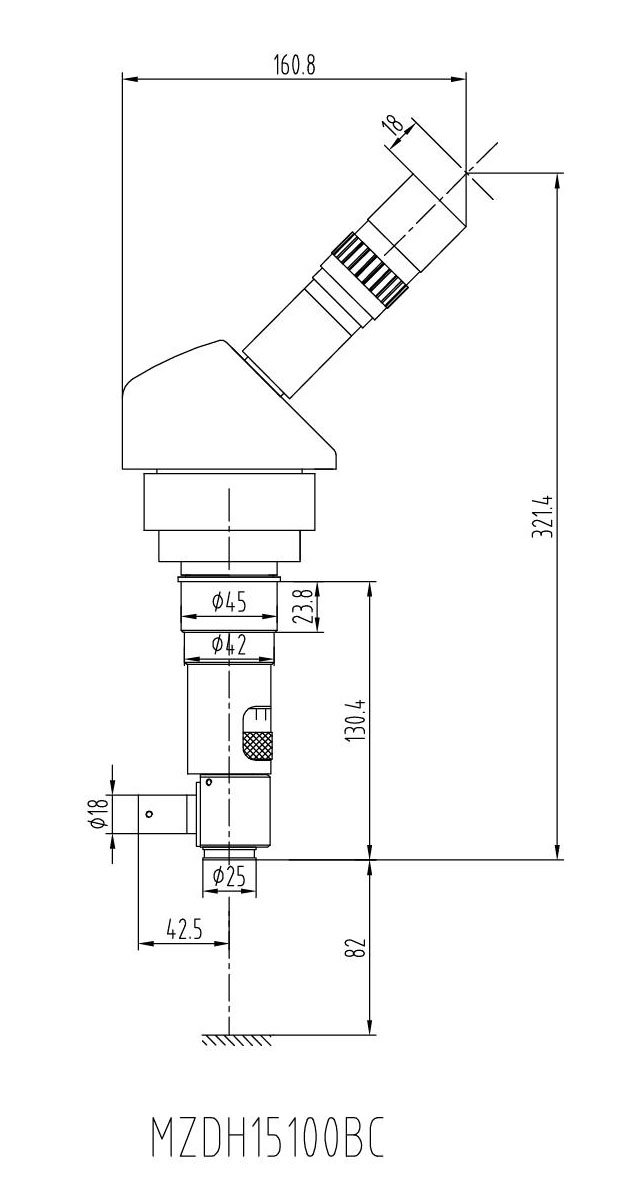

MZDH15100BC+SD11J-D	MZDH15100BC

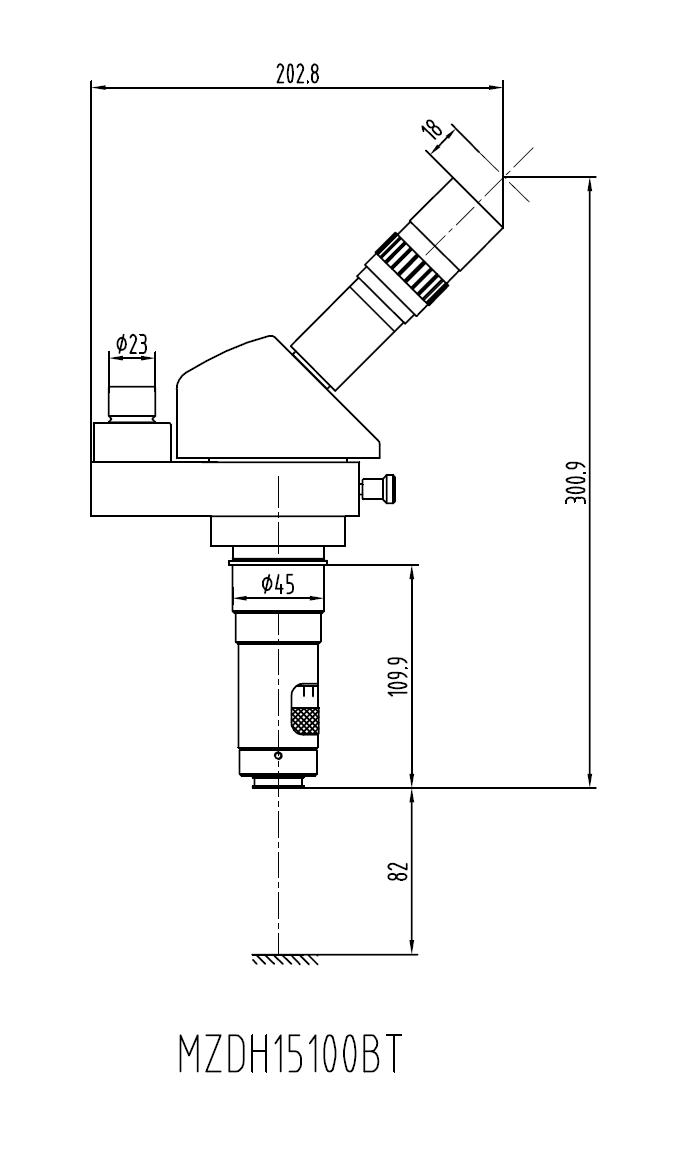

MZDH15100BT +SD11J-D+1X CCD	MZDH15100BT

Eyepieces observing Magnification	Standard eyepieces observation total magnification: 15X~100X.
Zoom range	1.5X~10X
WD	82mm
Eyetubes	Binocular eyetubes inclined 45°
Illuminators	Long life, environmentally friendly, various wavelength, high brightness LED coaxial illuminator
Interpupillary distance adjustment range	53mm~75mm
Diopter adjustment range	±6 Diopter
Focus range	Handwheel:50mm, the height of the pole is 242mm.
Holder and main body matched dimension	Φ45mm

● Binocular eyepieces observation

Eyepieces	Items	Main body	Objectives
Eyepieces	Items	Main body	0.5X	0.75X	1.5X	2X	5X
10X/Φ22	Total Mag.	15X~100X	7.5X~50X	11.25X~75X	22.5X~150X	30X~200X	75X~500X
10X/Φ22	FOV(mm)	Φ14.67~Φ2.2	Φ29.33~Φ4.4	Φ19.56~Φ2.93	Φ9.78~Φ1.47	Φ7.33~Φ1.1	Φ2.93~Φ0.44
15X/Φ17	Total Mag.	22.5X~150X	11.25X~75X	16.875X~112.5X	33.75X~225X	45X~300X	112.5X~750X
15X/Φ17	FOV(mm)	Φ11.33~Φ1.7	Φ22.67~Φ3.4	Φ15.11~Φ2.27	Φ7.56~Φ1.13	Φ5.67~Φ0.85	Φ2.27~Φ0.34
20X/Φ14	Total Mag.	30X~200X	15X~100X	22.5X~150X	45X~300X	60X~400X	150X~1000X
20X/Φ14	FOV(mm)	Φ9.33~Φ1.4	Φ18.67~Φ2.8	Φ12.44~Φ1.87	Φ6.22~Φ0.93	Φ4.67~Φ0.7	Φ1.87~Φ0.28
30X/Φ9	Total Mag.	45X~300X	22.5X~150X	33.75X~400X	67.5X~450X	90X~600X	225X~1500X
30X/Φ9	FOV(mm)	Φ6~Φ0.9	Φ12~Φ1.8	Φ8~Φ1.2	Φ4~Φ0.6	Φ3~Φ0.45	Φ1.2~Φ0.18
WD(mm)		82	175	117	54	35	10.1
Zoom body magnification range:1.5X～10X

● Video Display

Objective	Items	CCD adapter
Objective	Items	0.5X	1X
1.0X	Total optical Mag.	0.75X~5X	1.5X~10X
	FOV(mm)	4.8X6.4~0.72X0.96	2.4X3.2~0.36X0.48
	WD(mm)	82
0.5X	Total optical Mag.	0.375X~2.5X	0.75X~5X
	FOV(mm)	9.6X12.8~1.44X1.92	4.8X6.4~0.72X0.96
	WD(mm)	175
0.75X	Total optical Mag.	0.5625X~3.75X	1.125X~7.5X
	FOV(mm)	6.4X8.53~0.96X1.28	3.2X4.27~0.48X0.64
	WD(mm)	117
1.5X	Total optical Mag.	1.125X~7.5X	2.25X~15X
	FOV(mm)	3.2X4.27~0.48X0.64	1.6X2.13~0.24X0.32
	WD(mm)	54
2X	Total optical Mag.	1.5X~10X	3X~20X
	FOV(mm)	2.4X3.2~0.36X0.48	1.2X1.6~0.18X0.24
	WD(mm)	35
5X	Total optical Mag.	3.75X~25X	7.5X~50X
	FOV(mm)	0.96X1.28~0.144X0.192	0.48X0.64~0.072X0.096
	WD(mm)	10.1
Zoom body magnification range 1.5X～10X

	Stands	SD1-D~SD18-D
	Eyepieces	10X, 15X, 20X, 30X
	Divisional eyepieces	10X, 15X, 20X
	Stage micrometers	CM0.1X, CM0.1XY, CMS0.2
	Auxiliary objectives	DH-W0.5, DH-W0.75, DH-W1.0, DH-W1.5, DH-W2.0 , DH-WP4.5

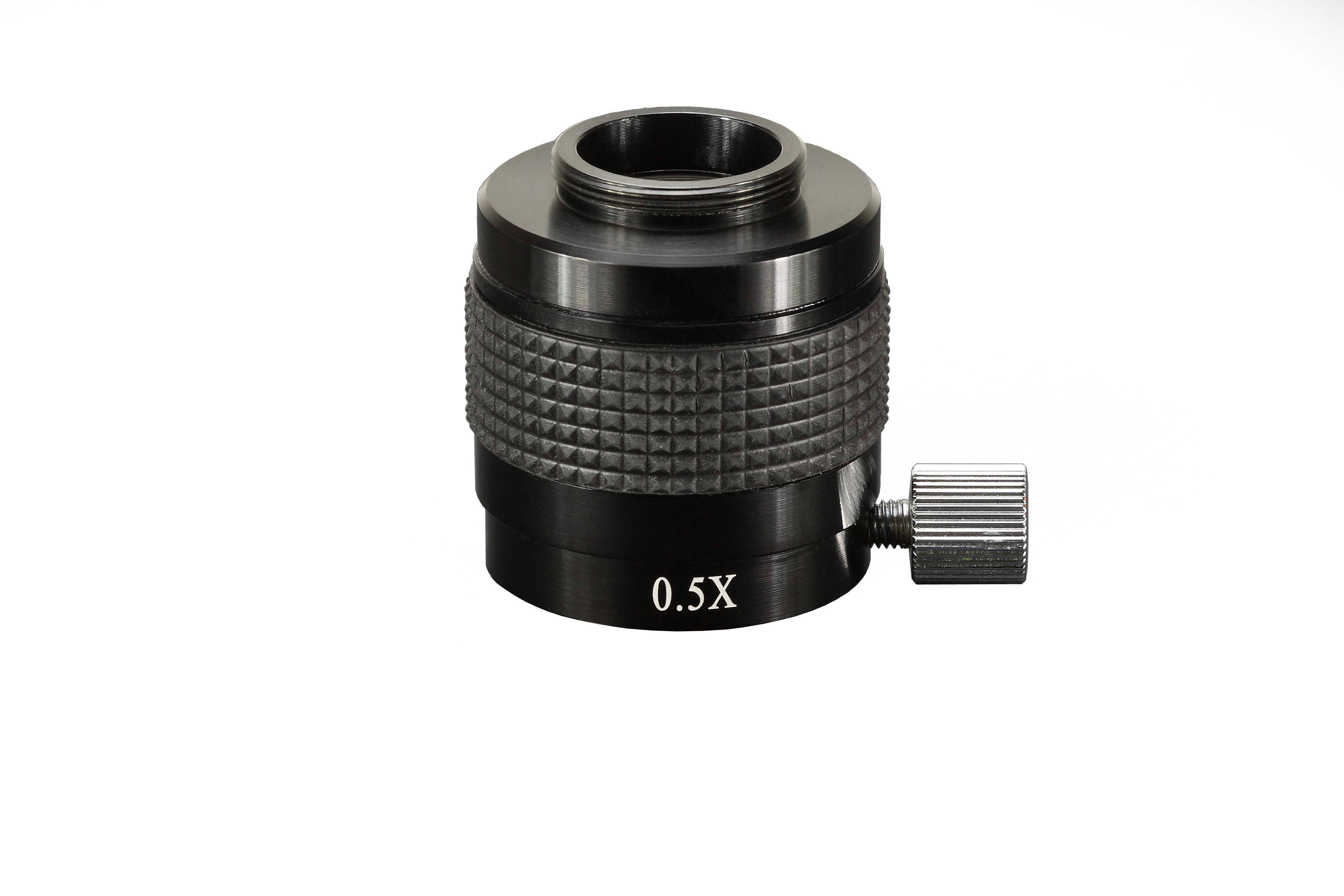

	CCD adapters	C0.5-S、C1.0-S
	Digital camera adapter	DT01
	Digital camera adapter	PT02
	1X CCD adapter with micrometer	CDM1.0 Note: It should be used with CCD adapter together.
	Mechanical stage	S7665, S10086 Note: Please explain in advance while the mechanical stage needs to be installed on the stand, the stand needs specially be increased the screw holes.
